KMS Connecting PiKS box to Screen

Touch Screen Prolite 15.6"

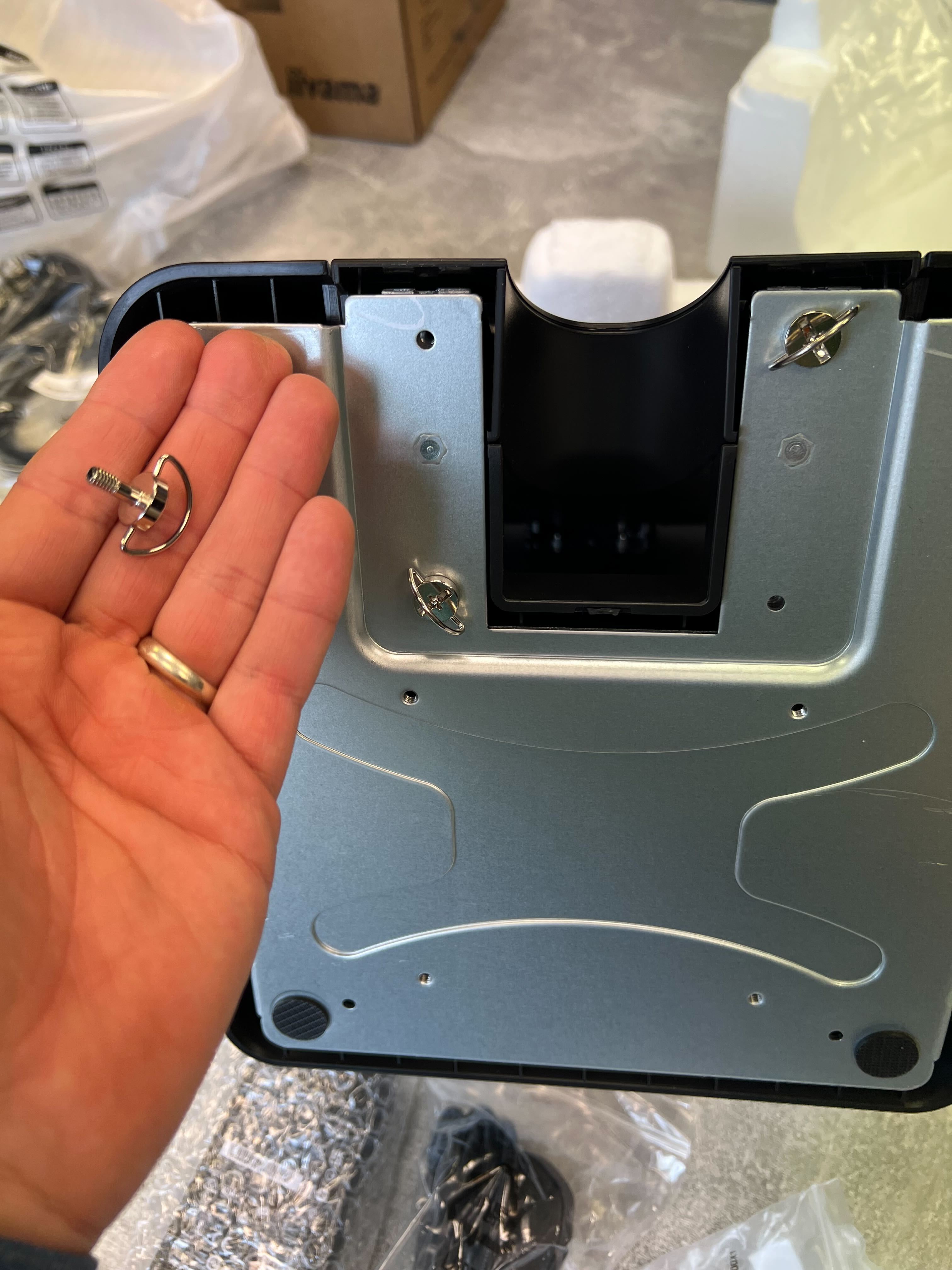

How to attached the base to the screen.

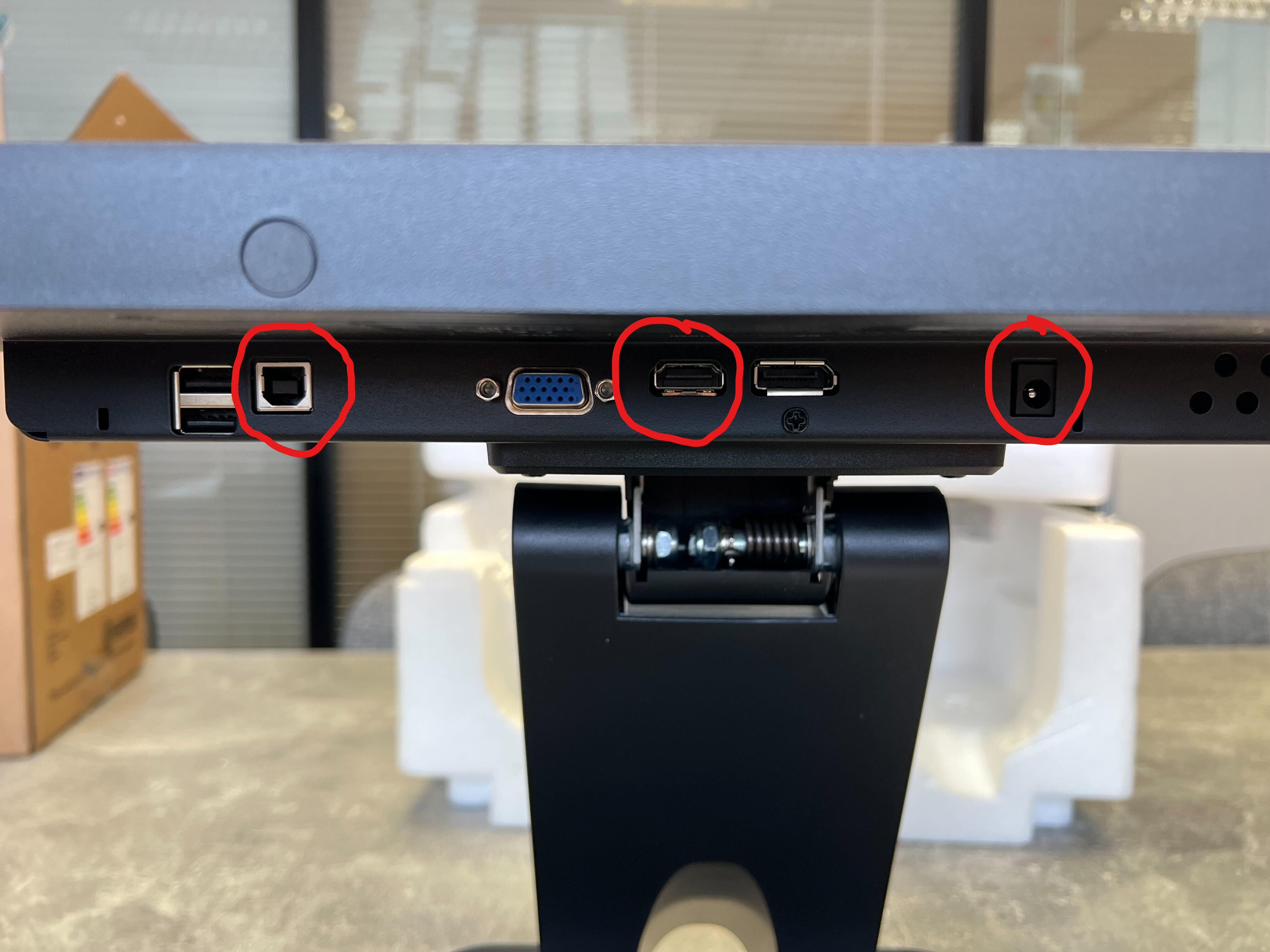

Cables needed :

Power Cable

HDMI

USB-A to USB-B ( The USB-B is connected to the Screen )

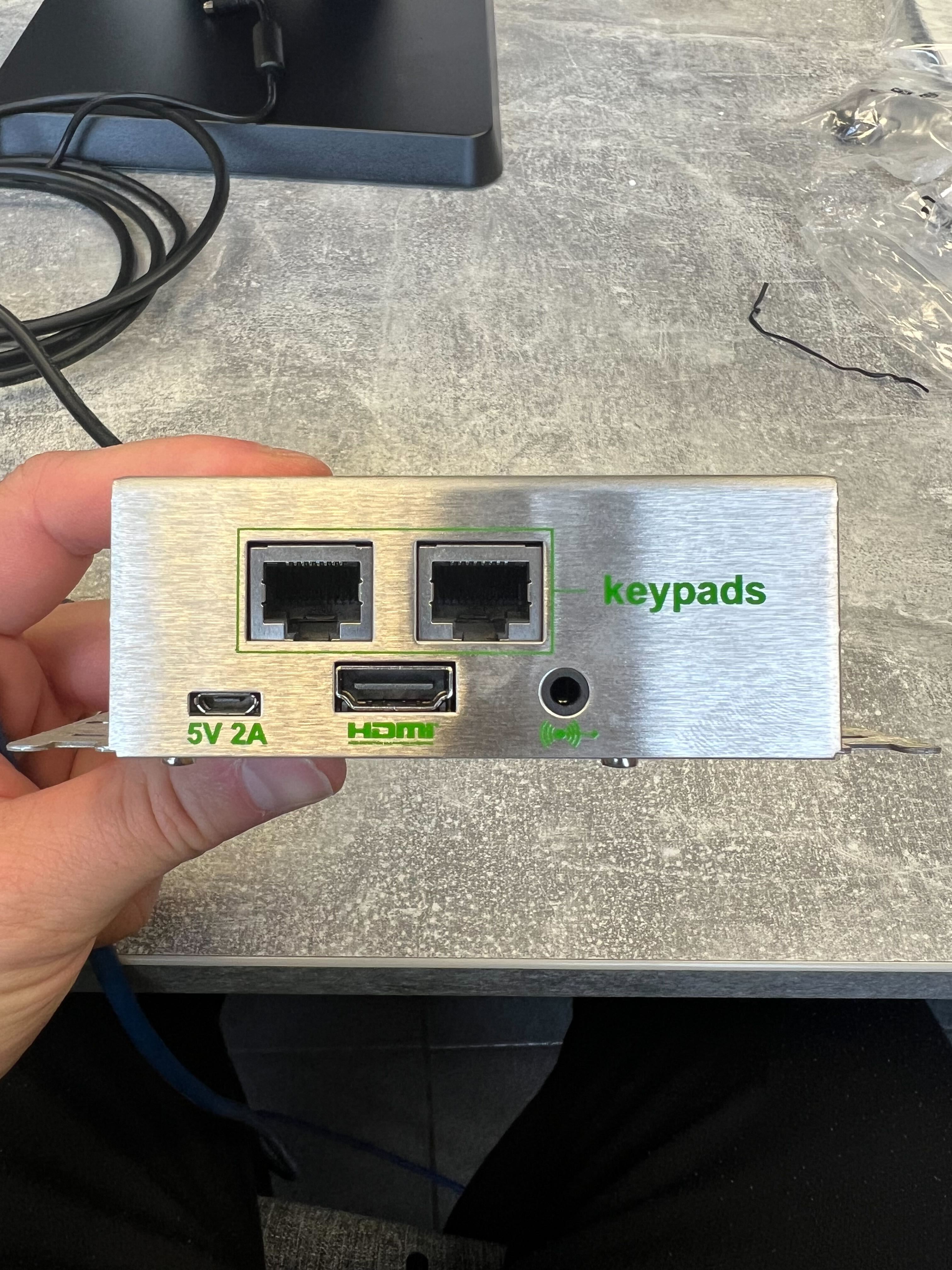

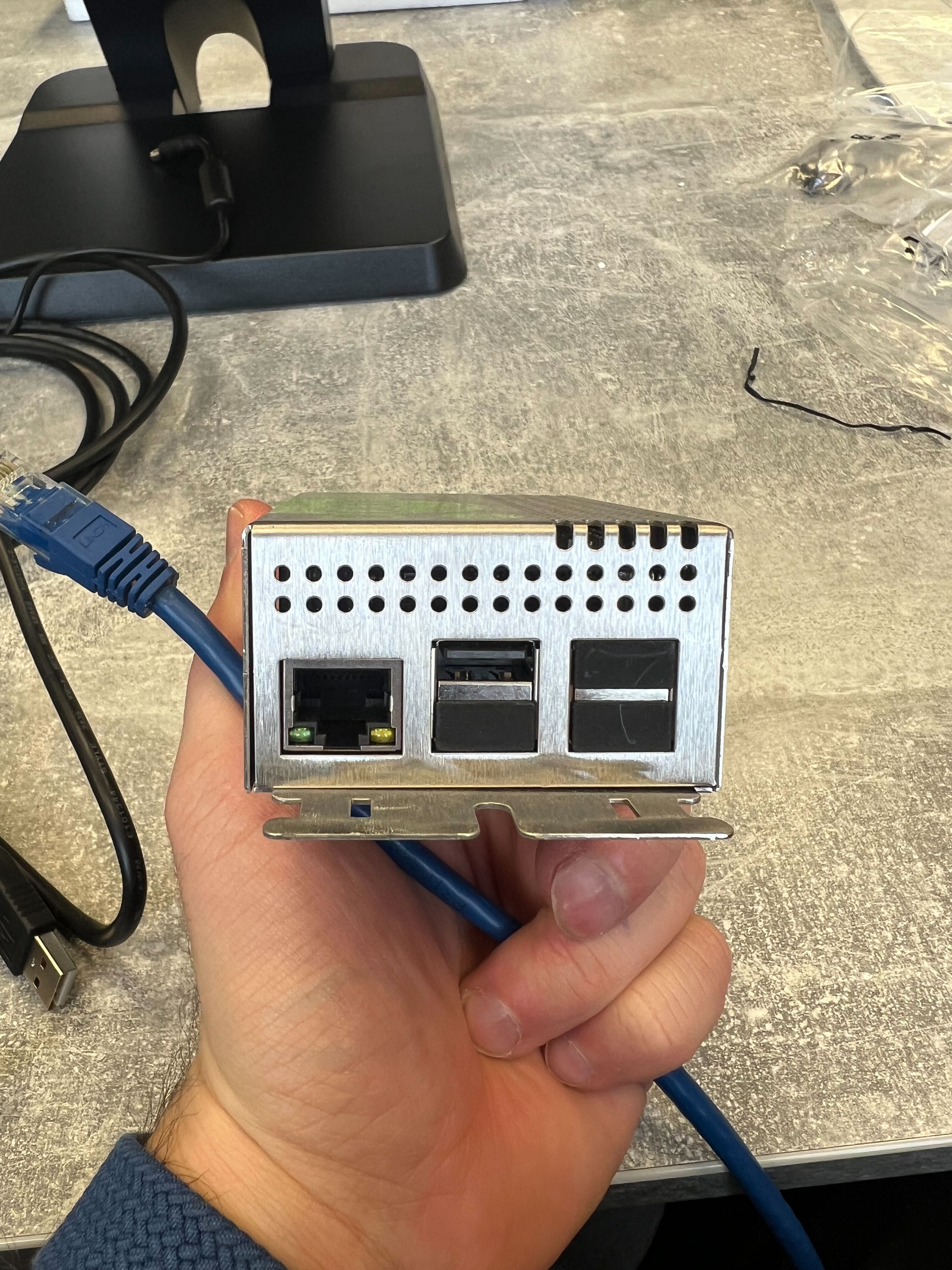

Cables to PiKS box:

USB-A to USB-B ( The USB-A is connected to the PiKS box )

Ethernet Cable

HDMI

Power Supplier ( if the ethernet ports are not POE )

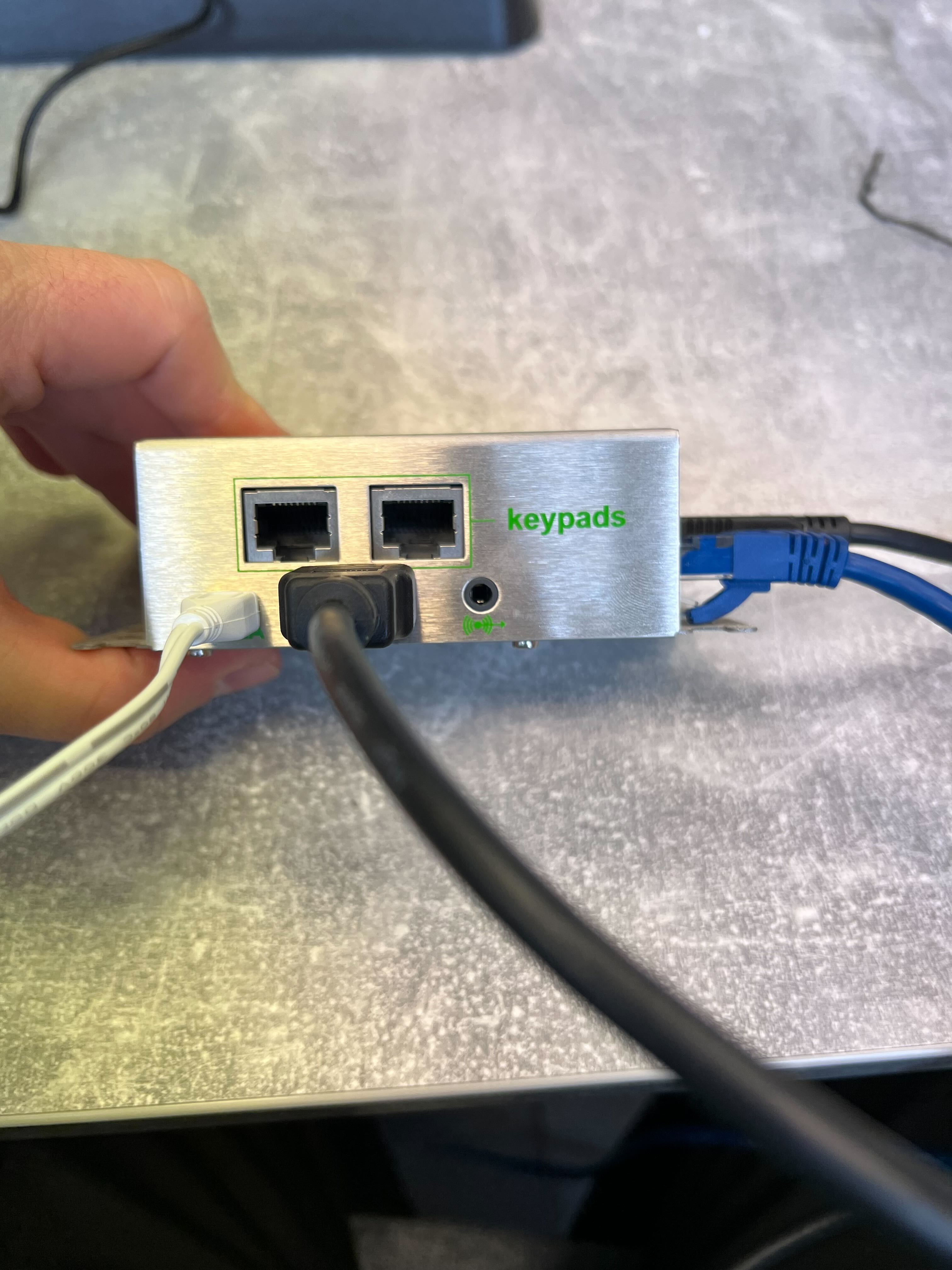

* Do not connect the ethernet cable to the ports called Keypads.

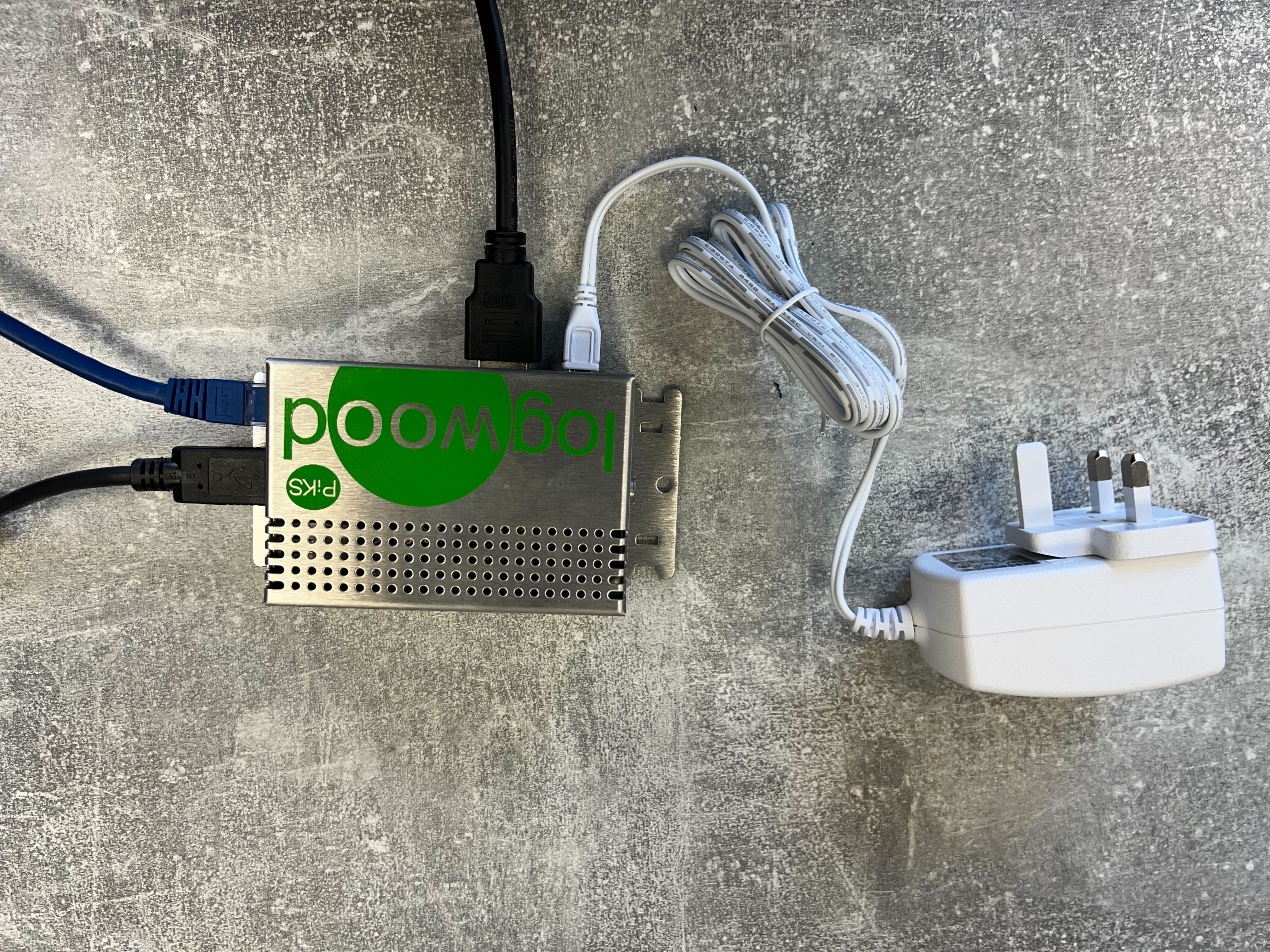

Example of connections :

After everything is connected, please follow the link below to connect your POS to the KMS

Connecting your POS to the KMS – Centegra
