Report Information
The Cook Area Assignment report provides details on the cook area that each product is to be assigned to within the Logwood KMS solution. This report is also used to assign cook areas to products. To do this, you need Update rights to this report within your user role. (If you don't have Update rights, Click Here.)
Access the Cook Area Assignment report via: Reports & Analysis > Data > Cook Area Assignment.
The report cannot be saved or scheduled, but you can export the report to PDF. Unlike other reports in the system, as the Cook Area Assignment report is specific to the Logwood KMS solution and so the CSV export is exported in the PLU.DAT file format allowing you to upload directly onto the KMS to assign cook areas.
Information on report filter options
The table below summarises report filter options available for this report.
| Product Groups |
Select which product groups to include. If left blank, all groups will be included. |
| Product Family |
Select a product family to return only items within that product family. |
| Merchant |
For multi-merchant companies only, select which merchant to return products for. If left blank, products from all merchants will be included. (Only lists POS merchants associated with the site, unless logged into the HQ site where all merchants are listed.) |
Report Output

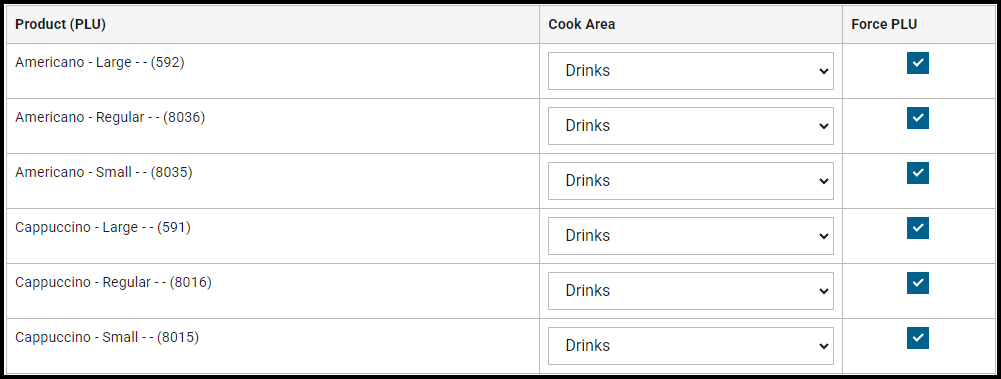

The report displays a table of products and their associated KMS cook area settings.
Additional information on this view
The table below summarises the data shown in each column of this report view.
| Product | Displays the KMS product name, or if the product does not have a KMS product name, the standard product name is shown. |
| Cook Area |
Displays the cook area that the product is assigned to, if applicable. The cook area can be changed in this column, if applicable. |
| Force PLU | Enable this option if the product shown should always be treated as a PLU in the KMS solution, and never as a product instruction / modifier. |
For larger sets of data, the output is split across various pages.
A Search option is available in the top right corner allowing you to filter the output across the various pages to selected products.
Exporting The plux.dat File
To export the data into a plux.dat file for uploading to the Logwood KMS solution:
- Select [REQUEST THE EXPORT DATA].
- This will process the request, then shortly after the Export Report panel will appear.
- Then select the button [OPEN CSV].
The plux.dat file will now be available to open.
